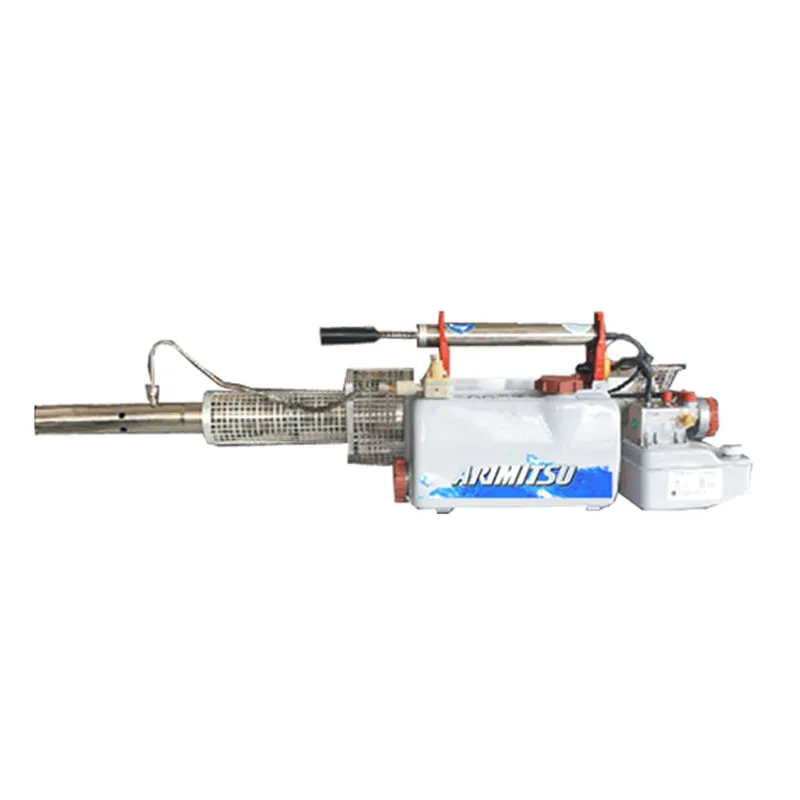

Features:
Enhanced engine, high efficiency and fuel saving, strong power, large spraying quantity, longer range, the spraying effect is better.
Manual start/Electric start， two start mode, easy start, excellent performance.
Precision control oil supply system, a more stable performance.
The first easily detachable structure of patent technology, more convenient maintenance repair.
6.0 L stainless steel solution tank ，stainless steel fuel tank, durable.
Use of lightweight metal heat protective net, good radiation effect, simple and generous.
Optional large solution tank, realize long time large area disinfection, sterilization operation

Technical parameters:
Size ：1080*280*330 (mm)
Packing size：1010*320*350 (mm)
Fuel consumption：1.4-1.6 liter /h
The spraying dosage：5-40 liter /h
Maximum power：≥17KW
Start mode : Electric start
Safety net: full protection
Spray smoke fog range：15-30m
Water spray mist range：8-12m
The fog particle diameter : The fog particle diameter less than 30 microns
Solution tank capacity： 6.0 liter
Solution tank pressure：0.3-0.4bar
Fuel tank capacity：1.8 liter
Fuel tank pressure：0.12 - 0.15bar
Start power supply：3V four 1# dry battery
The use of fuel：93# above pure gasoline
Application carrier：0 # diesel or white oil
Application of pharmacy: oily, water-based agent or wettable powder
Net weight:：7.5Kg
Gross weight：12.5 Kg
